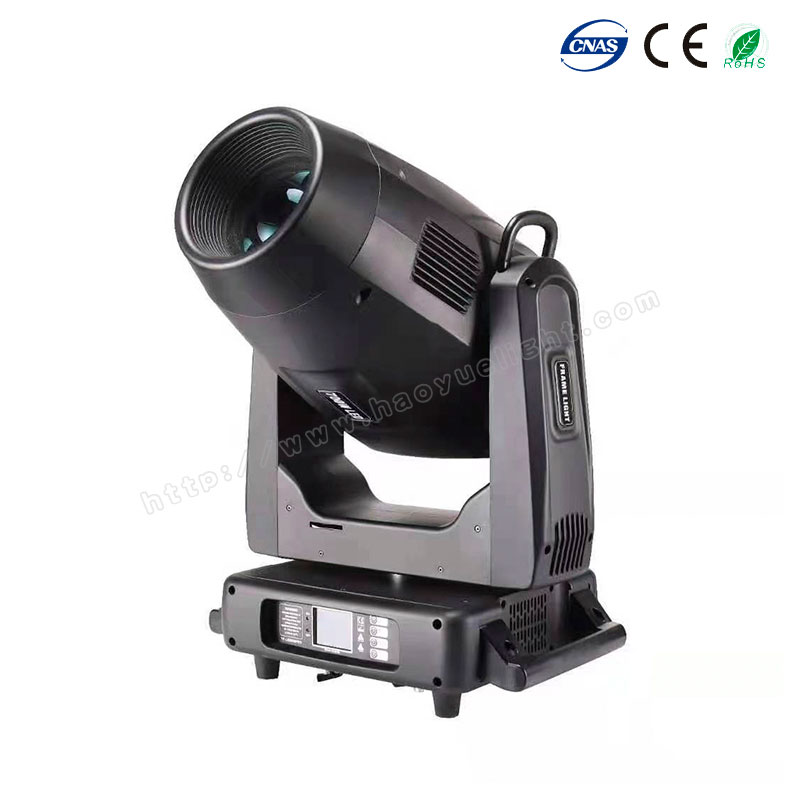

LED 700W Framing Light
Light source: 700W LED module
Light source life: 20000 hours; the highest illuminance at 5 meters is 56970LUX
17200LUX at the maximum spot diameter of 4.2 meters; 10490LUX at 12 meters
Light emitting lens: anti-reflection coating, diameter 155mm
Zoom range: 6°～55°, highlight mode: Ra≥70, high display mode: Ra≥90
Color system: CMY stepless color mixing, CTO color temperature linear adjustment
6 color chips + white light, can achieve two-way color rainbow,
two-color step gradation (linear movement)
Color wheel rotates in both directions, random color mode
Gobo system: 1 rotating gobo plate with 6 bidirectional rotating glass gobos
It can realize the effects of rotation, water flow and jitter;
The pattern wheel can be positioned
1 fixed pattern plate with 7 pattern effects, 1 dynamic effect wheel
1 set of omnidirectional graphics cutting system + 90° graphics orientation positioning
Effect configuration: 1 rotating 3+3 prism, can rotate in both directions,
1 independent fogging soft light effect
Fast motorized iris 5-100% linear adjustment, with macro function and multi-effect change
Electronic dimming, 0-100% linear dimming
The electronic stroboscopic speed is 1-25 times/second, and you can choose
pulsation, asynchronous, synchronous, random slow, medium, fast, etc.
Pan 540°, (16 bit precision scanning), Tilt 270°, (16 bit precision scanning)
Pan and Tilt reset system with automatic error correction
Control channel: 36 international standard DMX512 protocol
Art-net Ethernet control protocol and wireless DMX512 control (optional)
Menu display: LCD black and white display, Chinese and English languages
can be switched at will Font can be reversed 180 ° display
Input voltage: 100-240V~ 50/60Hz
Product size: 480mm×460mm×735mm N.W.: 37.5kg G.W.: 42kg
Packing method: carton, air box one pack one Protection level: Ip20
